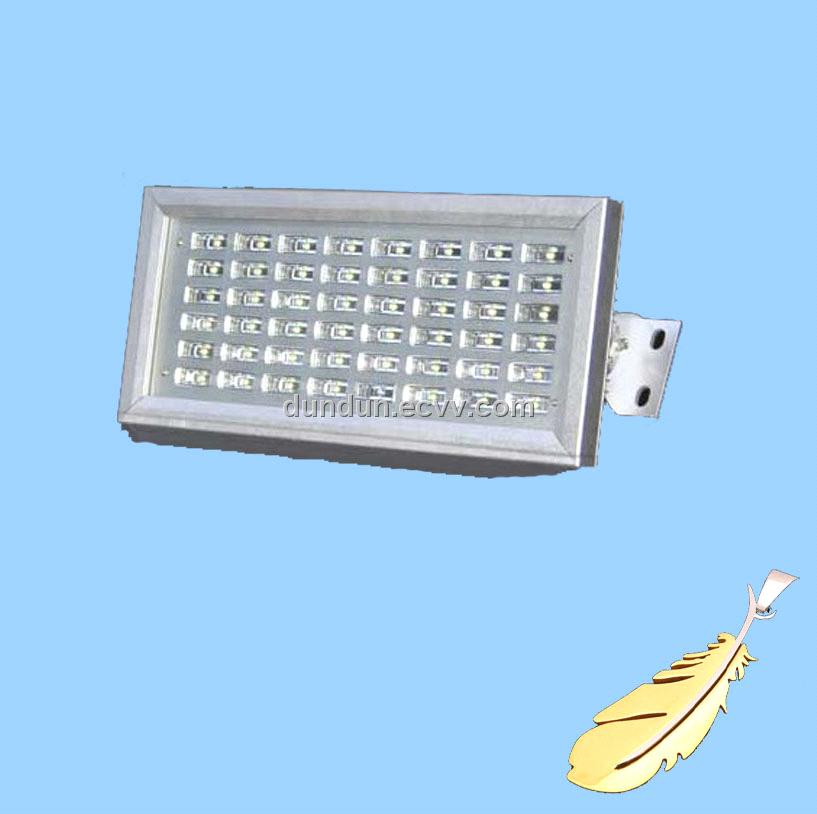

Yaham LED Floodlights Features
- Whole piece IP65
- Easy maintance
- Even light distribution
- Large range choice from 40W to 300W
- Can be used in many application with only one design, application such as LED Street Light, LED Tunel Light, LED Flood Light Super High Power with high luminance output
- Products are in accordance with ETL and UL testing standards
- Patented design with longer life than incandescent & fluorescents, and constant current design, solid state, high shock & vibration resistant, mercury-free, 50%+ savings in energy consumption
- Cree high efficiency chips up to 100lm/W
Applications
- Street Lighting
- Parking Lot Lighting
- Gas Station
- Tunnel Lighting
- High Pole Light
- Flood Light for Buildings, Signage, Shops etc.
- Toll Gate Lighting
Product specifications
| Product Name | 120W LED Floodlight | |||
| Product Model | YHL-FL-120-CXPC | |||
| Optical Parameters | Electrical Parameters | |||
| LED Chip Brand | CREE XPC | Input Voltage | AC 100~240V/100~277V | |
| LED Chip Type | 1W Single Chip | Power Frequency | 47~63Hz | |
| LED Chip Quantity | 112pcs | Output Voltage | DC 36~48V | |
| Color Temperature | 2700~7000K optional | Output Current | 2.8A (Constant Current) | |
| Fixture Efficiency | ≥94% | Total Power Consumption | 134W±5W | |
| Light Efficiency | ≥90lm/W | LED Power Consumption | 122W±5W | |
| Luminous Flux | 11000~12000lm | Power Efficiency | ≥91% | |
| Color Rendering Index | ≥80 | Power Factor | ≥0.95 | |
| Beam Angle | 60/90° | Total Harmonic Distortion | ≤15% | |
| Others | ||||
| Heat Sink Surface Temperature | 46°C (Ambient Temperature 30°C) | Lifespan | ≥50000Hrs | |
| Luminaire Base Temperature | 48°C (Ambient Temperature 30°C) | Fixture Material | Aluminum Alloy+PC Lens | |
| Working Temperature (Ambient) | –30~+55°C | IP Level | IP65 | |
| Working Humidity (Ambient) | 15%~90%RH | Net Weight | 8.2kg±0.4kg | |
| –40~+65°C | Outlook Dimension | L500mm×W424mm×H191mm | |
| HID Replacement | 400W | Light Body Package Outer Dimensions | 1 piece/package: L580mm×W504mm×H210mm | |
